Bowman Oilite AL030604 Flanged Sintered Bronze Bush

CN¥84.00
+ CN¥398.49 Shipping

Bowman Oilite AL030604 Flanged Sintered Bronze Bush

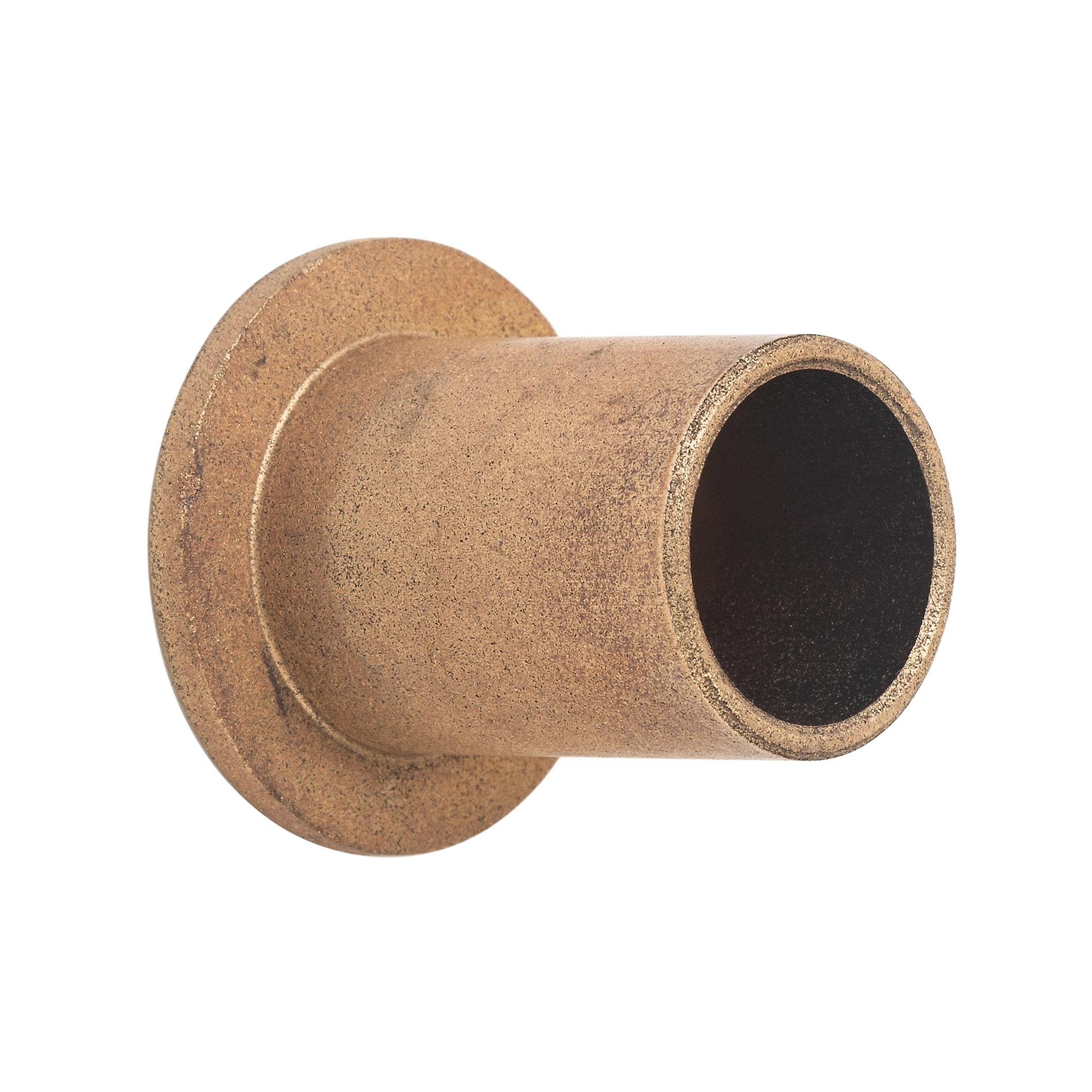

  • product image
Bowman Oilite AL030604 Flanged Sintered Bronze Bush

Bowman Oilite AL030604 Flanged Sintered Bronze Bush

Price: CN¥84.00
Sold by:
CN¥84.00
+ CN¥398.49 Shipping

Only 5 left in stock

We accept the following payment methods

Description

Product Details: Inner Diameter: 3. Outer Diameter: 6. Length: 4. Tolerance Range: UK Standard. Flange Thickness: 1.5 Flange Diameter: 9 Material Specification: Structure: Oil impregrated sintered bronze. Max PV (N/mm2 x m/s): 1.8. Max Static Load: (N/mm2): 50. Max Dynamic Load (N/mm2): 14. Max Sliding Speed (m/s): 5. Operating Temperature: -60 to 200 (dependant on lubrication). Density (g/cm3): 6.6 Radial Crushing Strength (K Min M/mm2): 160. Tolerance & Fittings (Metric): Inside Diameter: Min: 3.002 Max: 3.012 Tolerance: G7. Outside Diameter: Min: 6.019. Max: 6.031. Tolerance: s7. Overall Length: Min: 3.910 Max: 4.090 Tolerance: js13 Flange Thickness Tolerance: Min: 1.430 Max: 1.570 Tolerance: js13 Flange Diameter Tolerance: Min: 8.890 Max: 9.110 Tolerance: js13 Recommended Housing Size: 6.000 6.012 Tolerance: H7 Shaft Diameter: Min: 2.984 Max: 2.994 Tolerance: f7 Fitting Pin Size: Min: 3.002 Max: 3.006 Tolerance: m5 Concentricity Max: Min: 0.030 Max: 0.030 Tolerance: IT9 Inside Diameter When Fitted: Min: 3.000 Max: 3.010 Tolerance: H7 PV Calculation: Max RPM: 31830.99 Max Load (KG): 61.162 Max PV Factor (N/mm2 x m/s): 1.8
  • Fruugo ID: 155817727-330055982
  • EAN: 0617748051227

Delivery & Returns

Dispatched within 3 days

  • EXPRESS: CN¥398.49 - Delivery between Mon 06 October 2025–Thu 09 October 2025

Shipping from United Kingdom.

We do our best to ensure that the products that you order are delivered to you in full and according to your specifications. However, should you receive an incomplete order, or items different from the ones you ordered, or there is some other reason why you are not satisfied with the order, you may return the order, or any products included in the order, and receive a full refund for the items. View full return policy
