Bowman Oilite AM050812 Plain Sintered Bronze Bush

CN¥84.00
+ CN¥401.49 Shipping

Bowman Oilite AM050812 Plain Sintered Bronze Bush

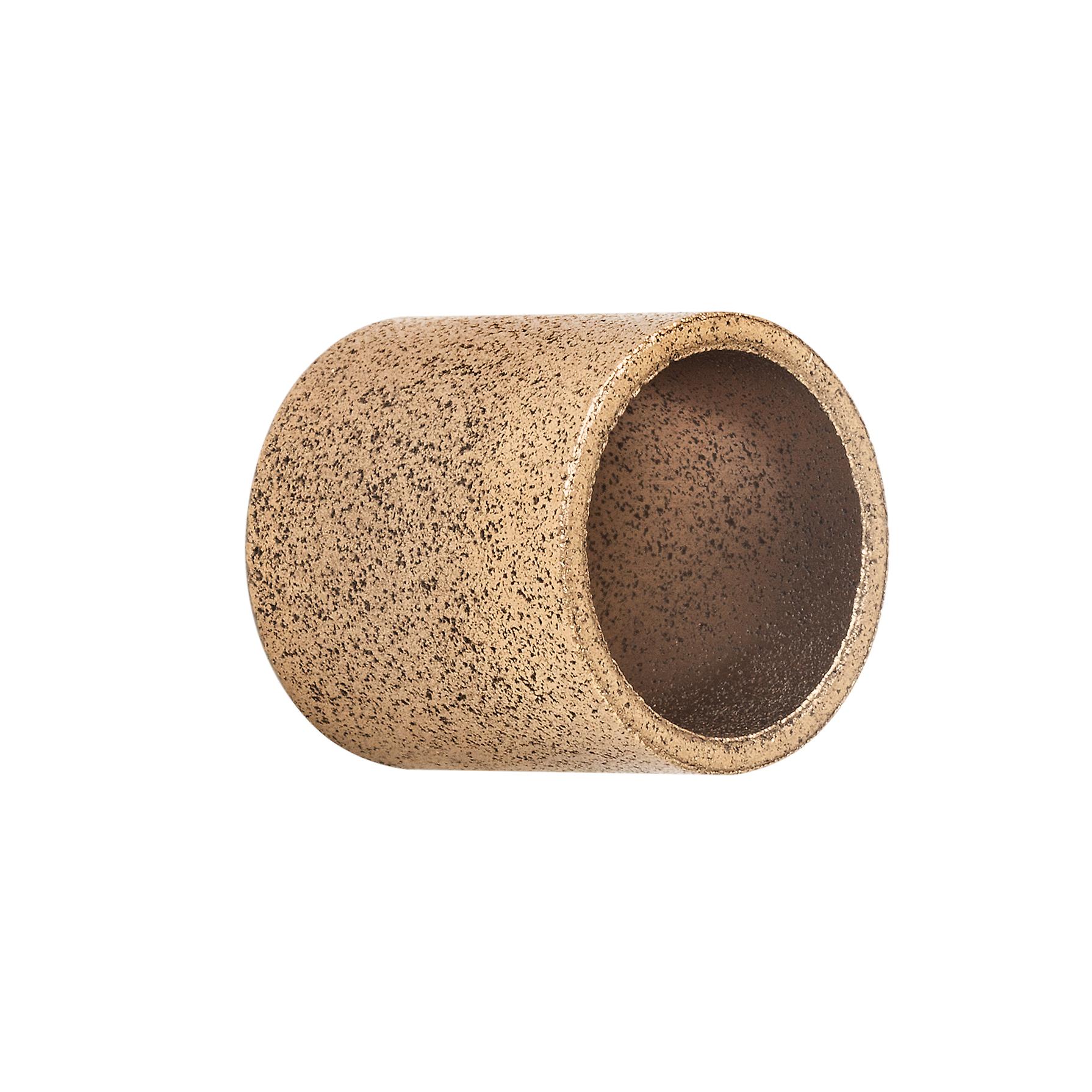

  • product image
Bowman Oilite AM050812 Plain Sintered Bronze Bush

Bowman Oilite AM050812 Plain Sintered Bronze Bush

Price: CN¥84.00
Sold by:
CN¥84.00
+ CN¥401.49 Shipping

Only 5 left in stock

We accept the following payment methods

Description

Product Details: Inner Diameter: 5. Outer Diameter: 8. Length: 12. Tolerance Range: UK Standard. Material Specification: Structure: Oil impregrated sintered bronze. Max PV (N/mm2): 14. Max Static Load: (N/mm2): 50. Max Dynamic Load (N/mm2): 14. Max Sliding Speed (m/s): 5. Operating Temperature: -60 to 200 (dependant on lubrication). Density (g/cm3): 6.6 Radial Crushing Strength (K Min M/mm2): 160. Tolerance & Fittings (Metric): Inside Diameter: Min: 5.004 Max: 5.016 Tolerance: G7. Outside Diameter: Min: 8.023. Max: 8.038. Tolerance: s7. Overall Length: Min: 11.865 Max: 12.135 Tolerance: js13 Recommended Housing Size: 8.000 8.015 H7 Shaft Diameter: Min: 4.978 Max: 4.990 Tolerance: f7 Fitting Pin Size: Min: 5.004 Max: 5.009 Tolerance: m5 Concentricity Max: Min: 0.036 Max: 0.036 Tolerance: IT9 Inside Diameter When Fitted: Min: 5.000 Max: 5.012 Tolerance: H7 PV Calculation: Max RPM: 19098.59 Max Load (KG): 305.81 Max PV Factor (N/mm2 x m/s): 1.8
  • Fruugo ID: 155817803-330056074
  • EAN: 0617748052255
