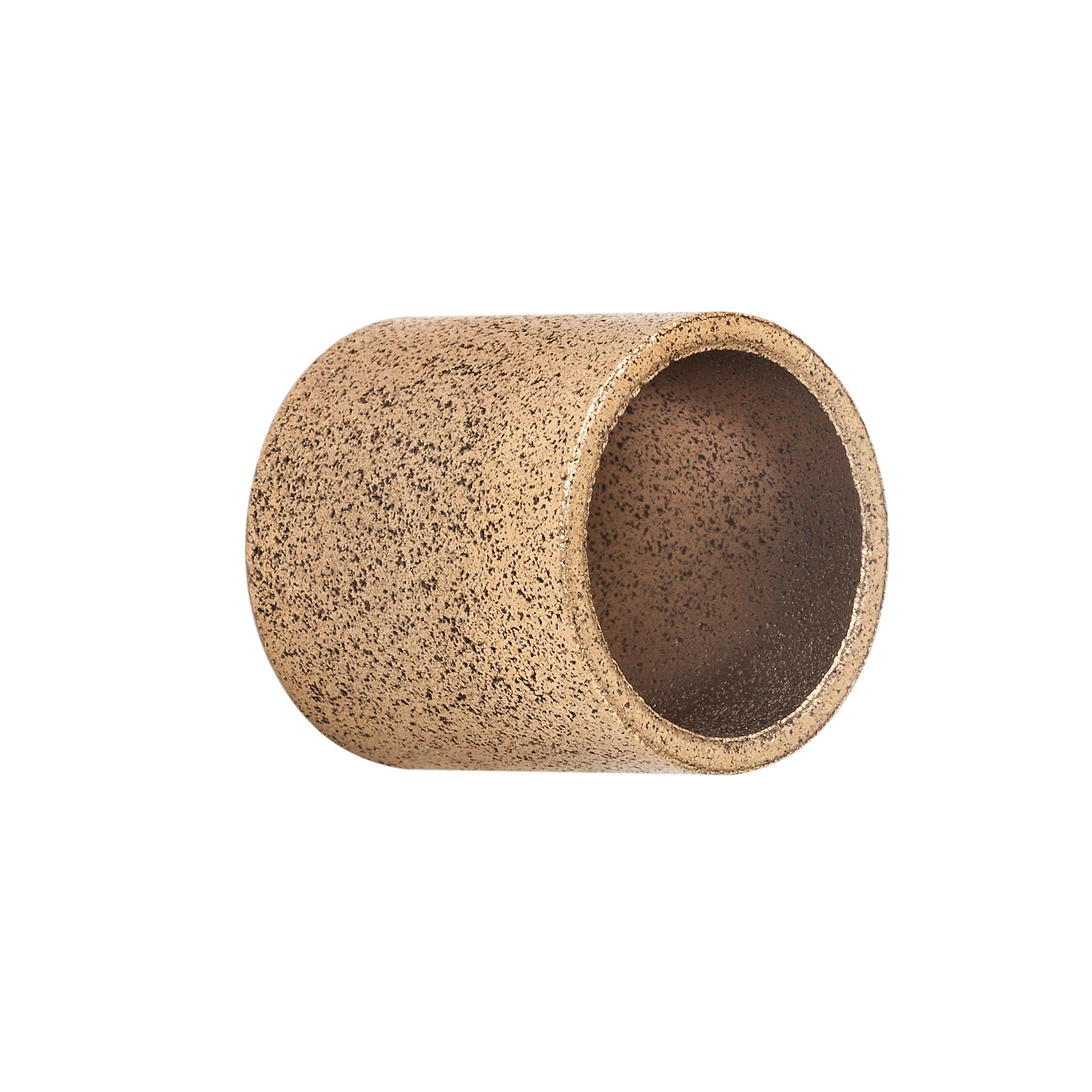

Bowman Oilite AM506070 Plain Sintered Bronze Bush

CN¥489.00
+ CN¥401.49 Shipping

Bowman Oilite AM506070 Plain Sintered Bronze Bush

  • product image
Bowman Oilite AM506070 Plain Sintered Bronze Bush

Bowman Oilite AM506070 Plain Sintered Bronze Bush

Price: CN¥489.00
Sold by:
CN¥489.00
+ CN¥401.49 Shipping

Only 4 left in stock

We accept the following payment methods

Description

Product Details: Inner Diameter: 50. Outer Diameter: 60. Length: 70. Tolerance Range: UK Standard. Material Specification: Structure: Oil impregrated sintered bronze. Max PV (N/mm2): 14. Max Static Load: (N/mm2): 50. Max Dynamic Load (N/mm2): 14. Max Sliding Speed (m/s): 5. Operating Temperature: -60 to 200 (dependant on lubrication). Density (g/cm3): 6.6 Radial Crushing Strength (K Min M/mm2): 160. Tolerance & Fittings (Metric): Inside Diameter: Min: 50.009 Max: 50.048 Tolerance: G8. Outside Diameter: Min: 60.053. Max: 60.099. Tolerance: s8. Overall Length: Min: 69.770 Max: 70.230 Tolerance: js13 Recommended Housing Size: 60.000 60.030 H7 Shaft Diameter: Min: 49.950 Max: 49.975 Tolerance: f7 Fitting Pin Size: Min: 50.009 Max: 50.020 Tolerance: m5 Concentricity Max: Min: 0.120 Max: 0.120 Tolerance: IT10 Inside Diameter When Fitted: Min: 50.000 Max: 50.025 Tolerance: H7 PV Calculation: Max RPM: 1909.859 Max Load (KG): 17838.94 Max PV Factor (N/mm2 x m/s): 1.8
  • Fruugo ID: 155817753-330056014
  • EAN: 0617748053849
