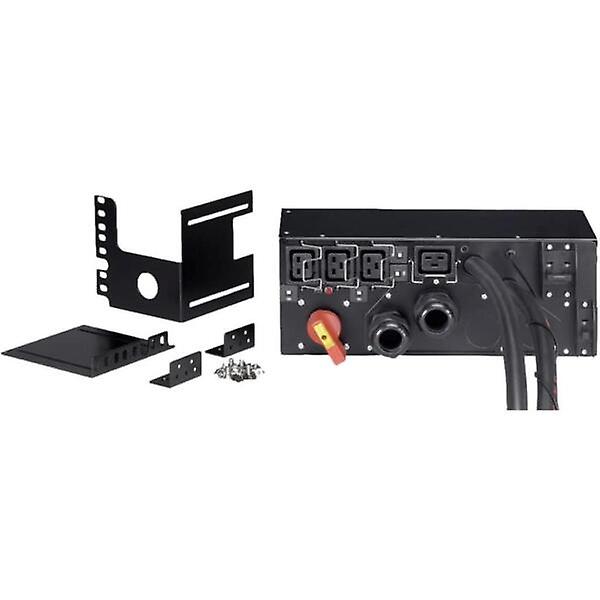

The Eaton HotSwap Maintenance Bypass enhances availability by providing service continuity in all situations. Ideal for maintenance and UPS upgrades, the HotSwap MBP facilitates hot-swappable battery replacement from the front panel, with no need to remove the UPS from the rack. Gain ultimate peace of mind that high availability and critical operations will never be compromised during battery replacement or other upgrades. The HotSwap MBP offers 5-15R and 5-20R receptacles. Features and Benefits Enables additional receptacles on the Eaton 5130, 9130, Evolution, Evolution S and EX UPSs for convenient, reliable power distribution Eases installation with unparalleled flexibility, including a variety of mounting options: rear panel, top, left or right of the UPS (depending on the model) Provides service continuity during battery replacement, UPS maintenance or upgrade GENERAL SPECIFICATIONS Product Name: Eaton HotSwap MBP maintenance bypass Catalog Number: MBP11KI31 UPC: 743172040169 Product Length/Depth: 185 mm Product Height: 270 mm Product Width: 410 mm Product Weight: 5.96 kg Compliances: CE Marked Certifications: CE Model Code: Eaton HotSwap MBP 11000i 3:1 PRODUCT SPECIFICATIONS Phase: Three-phase Electrical Connection: Screwed terminal Mounting Dimension: 482.6 mm (19 inch) Form Factor: 3U Mounting Direction: Horizontal Package Contents: Maintenance Bypass, Cable locking system, Rack-mounting kit, User manual Input Connection: Other Number Of Outputs Hardwired: 1 Fitted With: Mounting material, LED indication Operating Temperatur: 0 degrees to 40 degrees C (32 degrees to 104 degrees F ) Ethernet Interface: No Number Of Outlets With Earth PIN: 4 Mass Configuration: No Communication: No Number Of Outputs C19: 4 Outlet Control: No Switchable: No Input Voltage: 346-415V Colour: Black SNMP: No Over Voltage Category: 2 Ooutlets: (4) C19, Hardwired Type: Hotswap MBP VA Rating: 11000 VA Serial Interface: No Mounting Dimension (METRICAL): 270 Design PDU types
