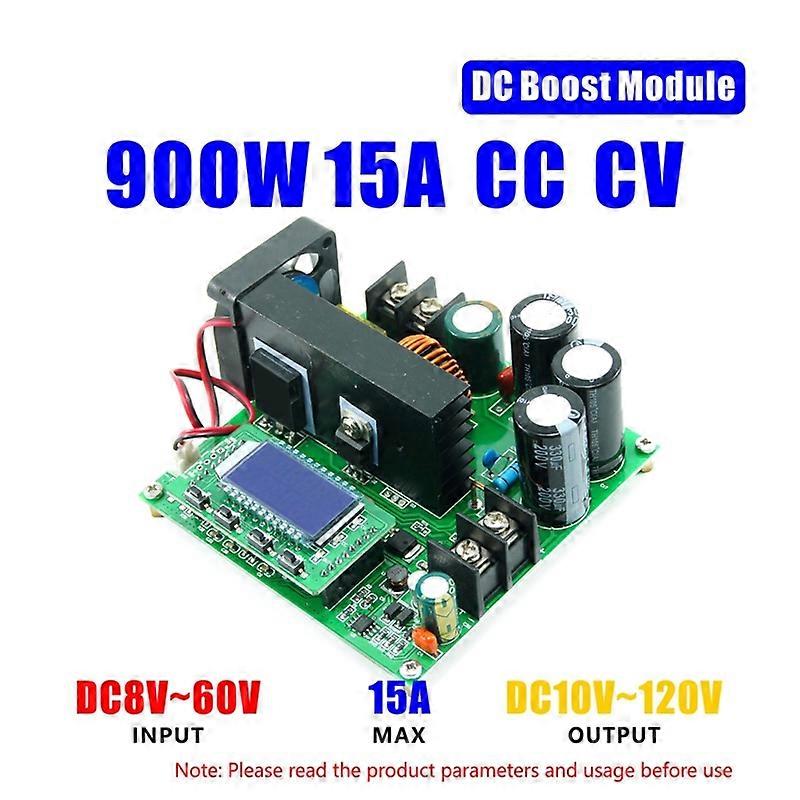

Technical ParametersInput Voltage(U-IN): DC8V - 60V Input Current: 0 - 15A Output Voltage (U-OUT): 10V - 120V Output Source: 0 - 15AWatulation Efficiency: 85%Operating Frequency: 150KHu-Short Circuit Protection: 20A Fuse (Non-Self-Recovering)Operating Temperature: -40 °C - 85 °C Control Method: Digital Control + LCD Screen DisplayVoltage Regulation Display: 0.00V - 00.0V - 000V - 000V - 000V Current Control Display: 0.00A - 00.0a Output Ripple: le; 50mVStorable array: 10 groups Weight: 213g (net weight) Size: 48mm × 100mm × 110mm (product) Package size: 90mm × 110mm × 120mm (electrostatic bag + carton packing) Package included: 267g Package included: 1 * DC 900W Boost ConverterHow to use1. Launch Boost(1) Manual boost, press and hold the OK button for 10 seconds to enter the interface, and select Auto Power Off as Manual Boost., Select AUTO-ON to start boost automatically.(2) Click OK to start or stop boost.2. Storage setIn the setting mode, press and hold the SET button for 10 seconds to enter the data storage interface, and use the up and down keys to select 10 data groups from 0 to 9, and press the SET button to save the settings.3. Recover and access the boardIn the normal interface, press and hold the SET button for 10 seconds to enter the storage and paging interface. You can select 10 data groups from 0 to 9 using the up and down keys and press the SET button to confirm the recall.
