描述

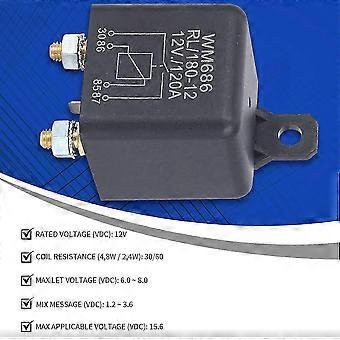

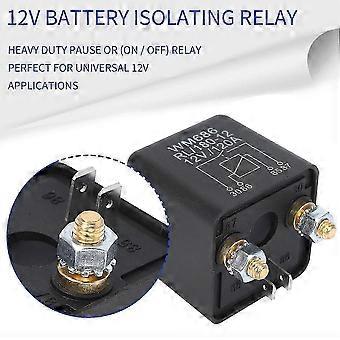

Heavy duty pause or (on / off) relay Perfect for universal 12V applicationsType: Extra Heavy Duty 120A Split Charging RelayConnections: 4-high quality and devicesVoltage: 12 V DC Rated Current: 120A Clamps Quantity: 4Contact form: Normally openContact Ratings: None: 120A 14 / 28VDCContact resistance: 100mMax at 6V DC 1AMax switching current: 300A (5 ms)Max switching voltage: 75VDCMax switching power: 2000WExpected lifespan Electric: 100,000 operationsMechanical life: 10,000,000 operationsCoil Specification:Rated voltage (): 12VCoil resistance (4,8W / 2,4W): 30/60Max Let Voltage (): 6.0 ~ 8.0Mix message (): 1.2 ~ 3.6Max Applicable Voltage (): 15.6characteristics:Temperature range: -30 ~ + 80 CelsiusVibration resistance: 10 ~ 55Hz, 1.5mmImpact resistance:Surgery Extreme: 10g: 100gHumidity: 40% ~ 85%Insulation resistance: 100mOhm min at 500VDCDielectric strength between open contacts 500VAC (for one minute / s)Between contact and coil: 750VAC (for one minute / s)Operating time: 15msRelease time: 10msMaterial: PlasticColor: BlackPackage size: 5 * 4 * 4cmPackage Contents: 1 x Heavy Duty Split Charger 120A ON / OFF RelayOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
-
Fruugo ID:
415787540-877619688
-
EAN:
6267231470413
