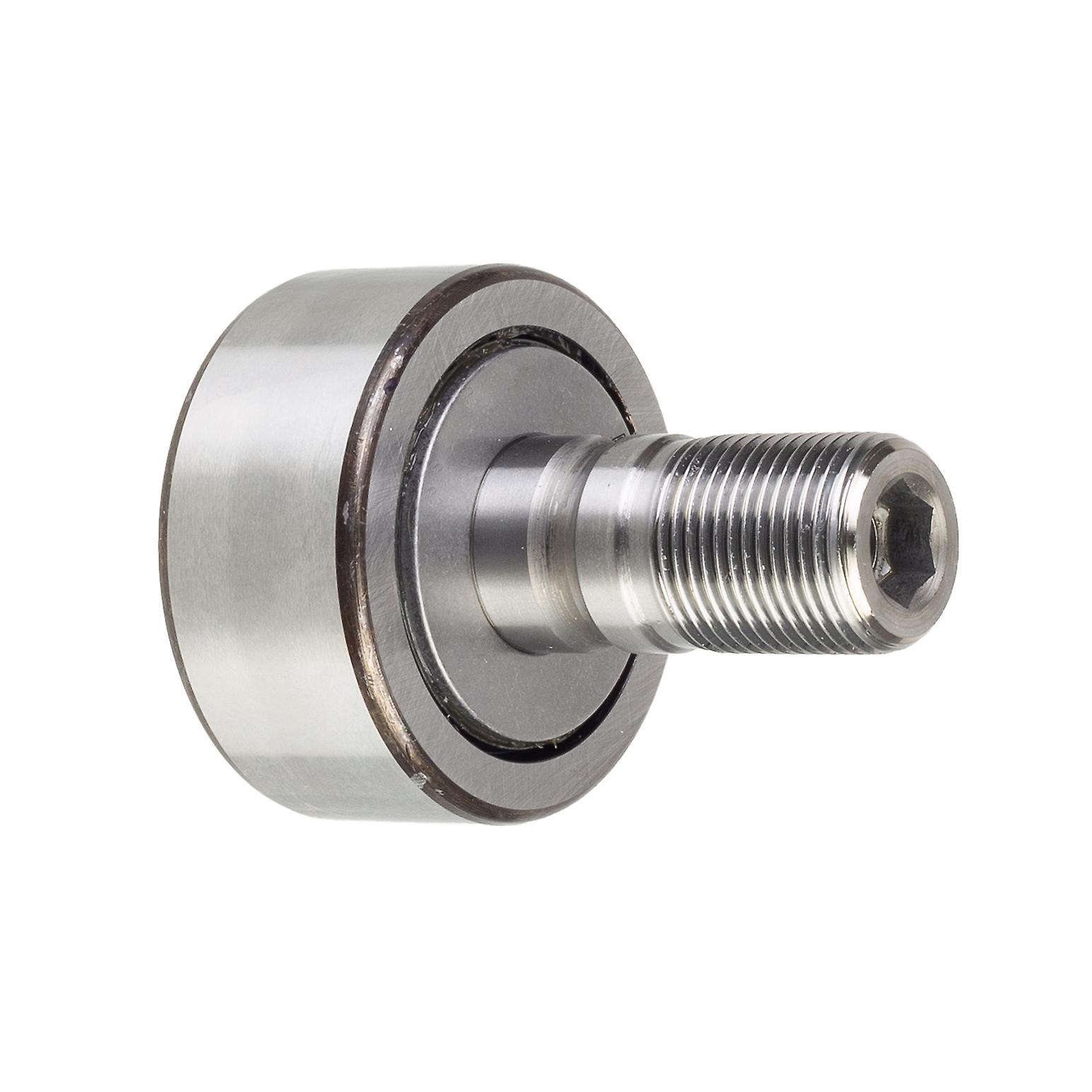

INA KR22-B Cam Stud Roller 10x22x12mm

A cam follower, also known as a track follower, is a specialized type of roller or needle bearing designed to follow cam lobe profiles. Cam followers come in a vast array of different configurations; however, the most defining characteristic is how the cam follower mounts to its mating part; stud style cam followers use a stud while the yoke style has a hole through the middle. Specifications Roller diameter: 22 mm Roller width: 12 mm Stud diameter: 10 mm Stud length: 23 mm Roller shape: Crowned Roller material: Steel Bearing element: Needle Rollers Closure type: Open Operating temperature range: Maximum of +280 °F Overall length: 36 mm Radial dynamic load capacity: 4.4 kN Radial static load capacity: 5 kN Maximum rpm: 5300 rpm Lubrication hole location: Head, Stud End Finish/coating: Uncoated Standards met: ANSI/ABMA Standard 18.1, ISO 7063
