INA LFCL42 Hollow Section Carriage 38.1x116x150mm

CN¥2,099.00
+ CN¥398.49 送货

INA LFCL42 Hollow Section Carriage 38.1x116x150mm

  • product image

INA LFCL42 Hollow Section Carriage 38.1x116x150mm

价格： CN¥2,099.00
由……售出:
CN¥2,099.00
+ CN¥398.49 送货

仅剩 1 件库存

我们接受以下付款方式

描述

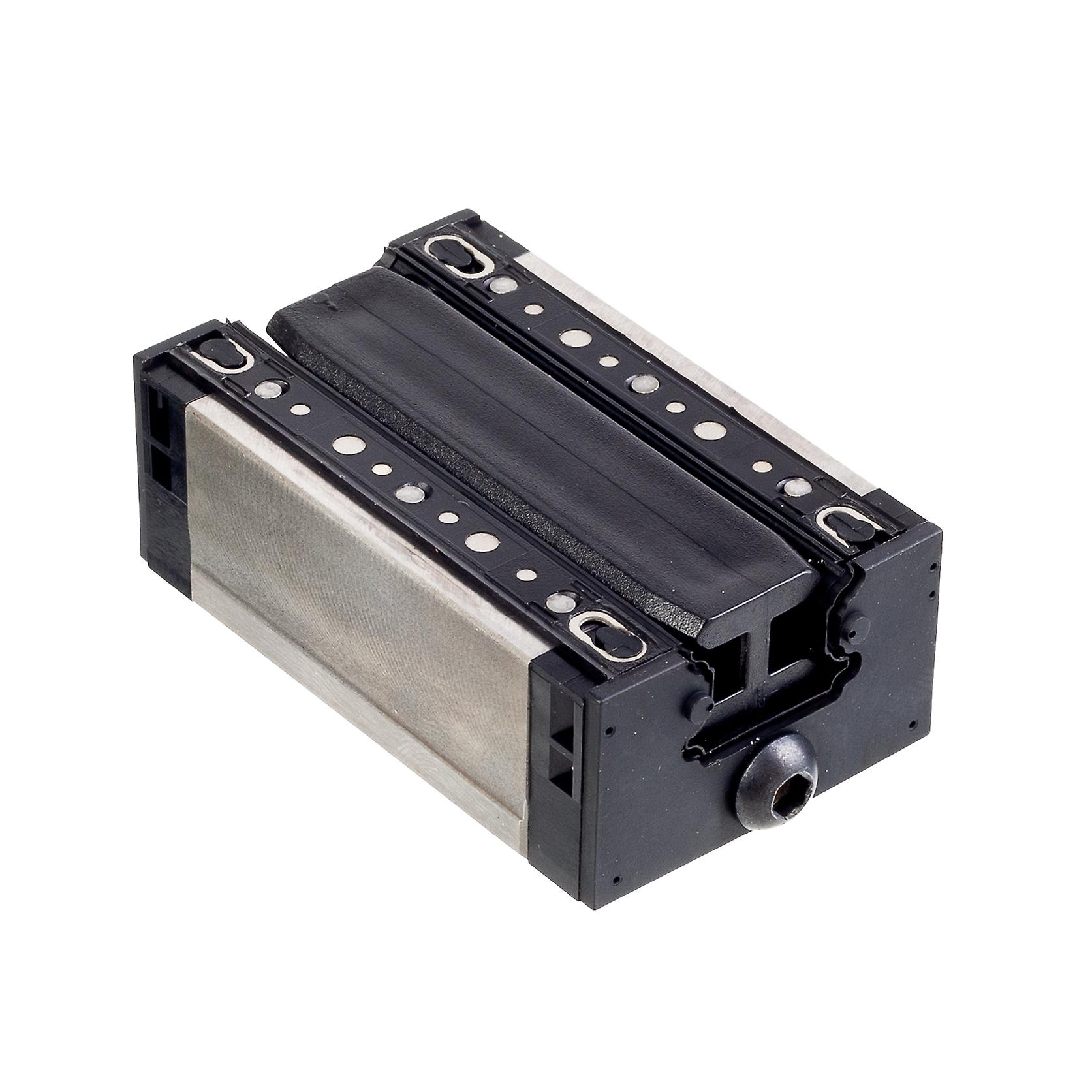

The economical series LFCL is characterised in particular by its low mass and high moment load carrying capacity Mx. In addition, more individual design of the adjacent construction is possible since the T-bolts can be moved longitudinally in the carriage plate. A carriage comprises a carriage plate made from anodised aluminium, four concentric bolts, four track rollers, two end covers for the hollow sections and eight T-nuts. The track rollers and end covers are already fitted. Specifications Manufacturer Series: LFCL For Rail Width: 42mm Carriage Length: 150mm Carriage Width: 116mm Dynamic Load Rating: 16900N Static Load Rating: 10000N
  • Fruugo ID: 161980740-344059131
  • EAN: 5059633168828
