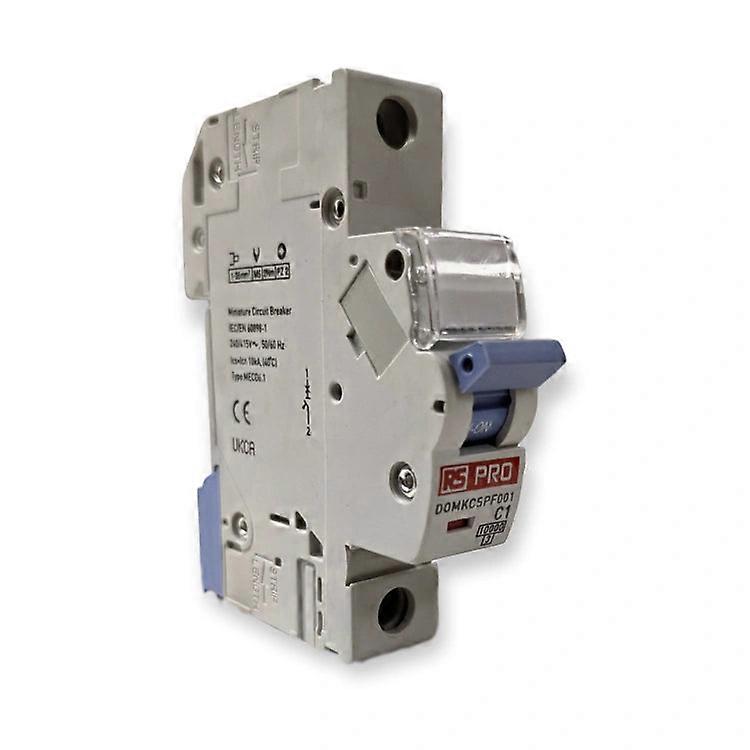

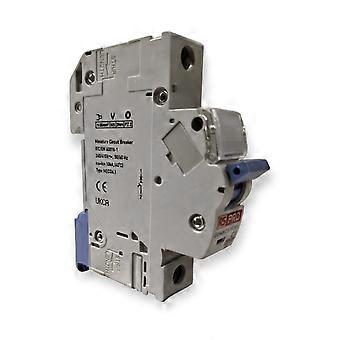

RS PRO MCB 1P C1A 240V AC/DC 10 kA

Features & Benefits: 240 V MCB. Type C (curve). Inscription window for circuit identification. Safety terminals, guide a cable to the cage terminal. Up to 35 mm² large cable terminals. Dual position DIN Rail clamp with Bi stable clip. Red-ON, Green-OFF positive contact indication. Air circulation around individual poles. Fitted auxiliary contacts. Thermoplastic high strength housing, flame retardant. IP20 Protection. Standards IS/IEC 60898-1 and IS/IEC60947-2. Quick and easy to use. Number of Poles: 1. Current Rating: 1A. Tripping Characteristics: Type C. Rated AC Voltage: 240V. Rated DC Voltage: 240V. Breaking Capacity at Maximum Voltage Rating: 10 kA. Series: DHMZ. Circuit Breaker Type: MCB. Width: 17.7mm. Length: 87.5mm. Mounting Style: DIN Rail Mount. Depth: 62mm. Reset Actuator Type: Rocker Switch. Tripping Mechanism: Thermal-Magnetic.
