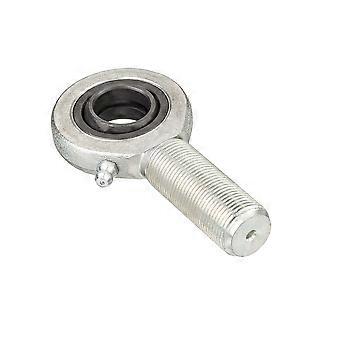

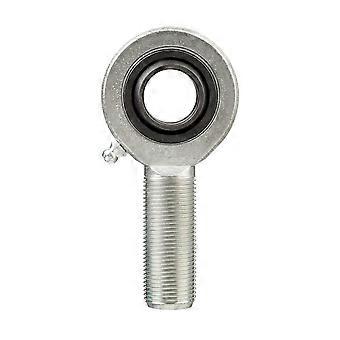

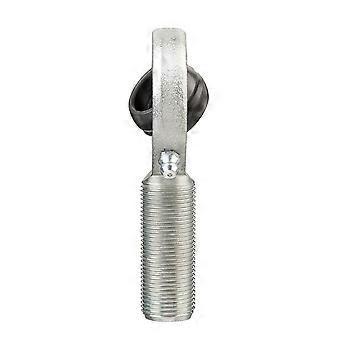

A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end (which requires perfect 90-degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female. Specifications Lubricant: Maintenance free dry lubrication. Design: Steel/PTFE sintered bronze. Bore diameter d: 10mm. Diameter head d2max: 30mm. Width inner ring B: 9mm. Thread G: M 10. Width head C1max: 7.5mm. Height shank end face - centre rod end eye h: 48mm. Angle of tilt : 12. Raceway diameter inner ring dk: 16mm. Length threat l1min: 26mm. Length (height) housing l2max: 65mm. Distance shank chamfer - centre rod end eye l7min: 13mm. Chamfer dimension bore r1min: 0.3mm. Basic dynamic load rating C: 8.7kN. Basic static load rating C0: 18.3kN. Specific dynamic load factor K: 100N/mm. Material constant KM: 1400.
