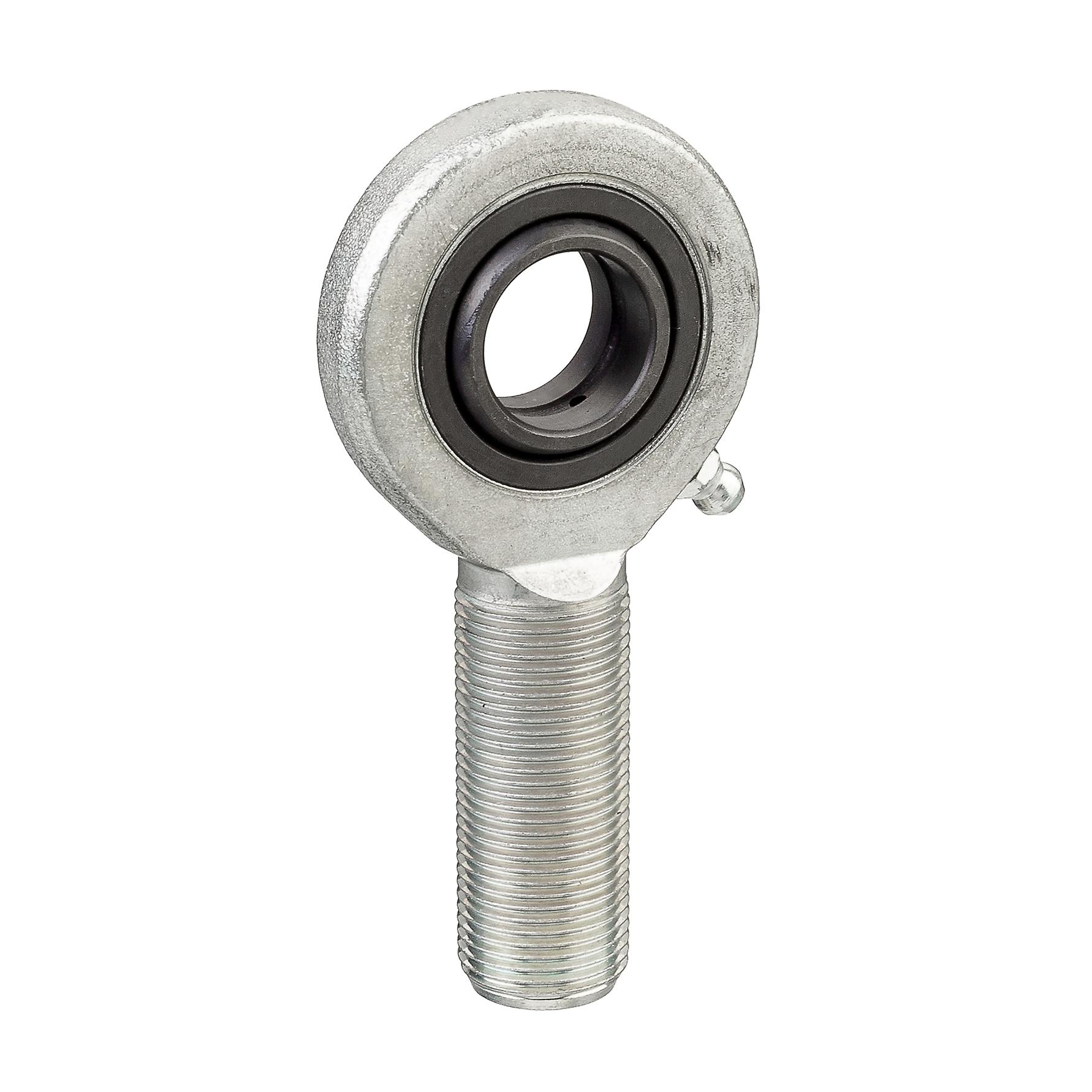

A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end (which requires perfect 90-degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female. Specifications Lubricant: Regular relubrication grease. Design: Steel/steel. Bore diameter d: 30mm. Diameter head d2max: 75mm. Width inner ring B: 22mm. Thread G6H: M 30x2. Width head C1max: 20mm. Height shank end face - centre rod end eye h1: 110mm. Angle of tilt : 6. Raceway diameter inner ring dk: 40.7mm. Diameter shank d4: 42mm. Length threat l3min: 45mm. Length (height) housing l4max: 149mm. Length wrench flat l5: 19mm. Distance shank chamfer - centre rod end eye l7min: 36mm. Size wrench wh14: 36mm. Thickness shank base for clamping bolts N1max: mm. Chamfer dimension bore r1min: 0.6mm. Basic dynamic load rating C: 62kN. Basic static load rating C0: 116kN. Specific dynamic load factor K: 100N/mm. Material constant KM: 330.
